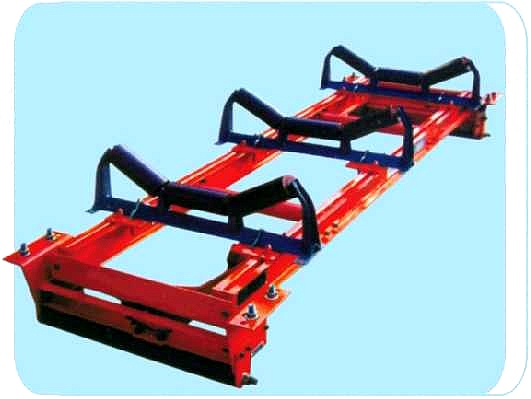

On-site maintenance of electronic belt scale

1. Transmission belt offset and treatment

The transmission belt offset is the situation where the axis of the buffer roller deviates from the axis of the conveyor during full load operation or weighing process. It is alsoElectronic belt scaleThis unavoidable situation is mainly caused by the following reasons:

\u003Ci>1．\u003C\/i> \u003Cb>1.\u003C\/b>\u003Ci>安裝轴线不正.\u003C\/i> \u003Cb>The installation axis is incorrect.\u003C\/b>

\u003Ci>2．\u003C\/i> \u003Cb>2.\u003C\/b>\u003Ci>缓冲托辊自身变形不正或连接头（传动带的连接头）不正.连接头对称重传感器形成的净重增加值及吸引力干扰增加值比较大,因而通常采用硫化连接头,不允许采用机械设备连接头.与此同时要确保输送皮带2侧环长误差不大于十毫米,总宽误差误差标准秤的0．5％.\u003C\/i> \u003Cb>The buffer roller itself is not deformed correctly or the connector (the connector of the transmission belt) is incorrect. The connector has a relatively large added value of net weight and attraction interference to the load cell. Therefore, vulcanized connectors are usually used, and mechanical equipment connectors are not allowed. .At the same time, it is necessary to ensure that the length error of the two side loops of the conveyor belt is no more than ten millimeters, and the total width error is 0.5% of the standard scale.\u003C\/b>

\u003Ci>3．\u003C\/i> \u003Cb>3．\u003C\/b>\u003Ci>滚桶轴线同胶带机的轴线不成直角,需要重装,并确保头,尾滚筒轴向核心统一.\u003C\/i> \u003Cb>The axis of the drum is not at right angles to the axis of the belt conveyor, so it needs to be reinstalled and the axial core of the head and tail drums must be unified.\u003C\/b>

\u003Ci>4．\u003C\/i> \u003Cb>4．\u003C\/b>\u003Ci>安裝时托辊组轴线同胶带轴线不竖直造成偏移.当缓冲托辊往哪偏移,就将哪儿的托辊向缓冲托辊前进的角度挪动一些.\u003C\/i> \u003Cb>During installation, the axis of the roller group is not perpendicular to the axis of the belt, causing deviation. When the buffer roller deviates, move the roller there towards the forward angle of the buffer roller.\u003C\/b>

\u003Ci>5．\u003C\/i> \u003Cb>5.\u003C\/b>\u003Ci>电子皮带秤滚桶不水准造成缓冲托辊偏移.假如安裝偏差,应调平;如因水准直径不一致,需再次加工滚桶外圆.\u003C\/i> \u003Cb>The electronic belt scale drum is not level, causing the buffer roller to shift. If the installation is deviated, it should be leveled; if the level diameter is inconsistent, the outer circle of the drum needs to be processed again.\u003C\/b>

\u003Ci>6．\u003C\/i> \u003Cb>6．\u003C\/b>\u003Ci>滚桶的表层粘接材料,使滚桶成了圆锥面,会使缓冲托辊向一边偏移.这也是由料粉造成的,应留意避免此状况并常常清理.\u003C\/i> \u003Cb>The surface bonding material of the drum makes the drum have a conical surface, which will cause the buffer roller to shift to one side. This is also caused by the material powder. Care should be taken to avoid this situation and clean it frequently.\u003C\/b>

\u003Ci>7．\u003C\/i> \u003Cb>7.\u003C\/b>\u003Ci>缓冲托辊一旦再加上负荷就偏移.通常是因为材料的因为点不是缓冲托辊正中间,应做相应调节.\u003C\/i> \u003Cb>The buffer roller will deflect once a load is added. This is usually because the point of the material is not in the middle of the buffer roller and should be adjusted accordingly.\u003C\/b>

\u003Ci>8．\u003C\/i> \u003Cb>8.\u003C\/b>\u003Ci>缓冲托辊满载时发生空车偏移,而再加上材料后获得纠正.这种情况通常是初支撑力很大造成的,尽可能调节.\u003C\/i> \u003Cb>The empty vehicle offset occurs when the buffer roller is fully loaded, and is corrected after adding material. This situation is usually caused by a large initial support force, so adjust it as much as possible.\u003C\/b>

2. Avoidance of powder

\u003Ci>1．\u003C\/i> \u003Cb>1.\u003C\/b>\u003Ci>可在传动带2侧提升挡料板.\u003C\/i> \u003Cb>The baffles can be raised on both sides of the transmission belt.\u003C\/b>

\u003Ci>2．\u003C\/i> \u003Cb>2.\u003C\/b>\u003Ci>墙角圆形传动带,在一般圆形传动带上提升像城门上防箭垛的竖边.\u003C\/i> \u003Cb>The corner circular transmission belt is lifted on the general circular transmission belt like the vertical edge of the anti-arrow butt on the city gate.\u003C\/b>

\u003Ci>3．\u003C\/i> \u003Cb>3．\u003C\/b>\u003Ci>裙边式圆形传动带.\u003C\/i> \u003Cb>Skirt type round drive belt.\u003C\/b>

3. The transmission belt is very likely and its treatment

The conveyor belt operates by the friction between it and the roller. If the friction is insufficient, it is likely to slip or not rotate. The transmission belt is likely to cause speed errors, and the materials on the transmission belt must be weighed repeatedly. In order to prevent the transmission belt from being damaged If possible, it is necessary to increase the friction between the transmission belt and the roller. The amount of friction between the two is positively related to the friction resistance, contact area and the positive pressure between the two. To increase the friction, we need to start from these aspects: Expand To determine the positive pressure between the drum and the transport force, the electronic belt scale needs to use a tensioning device, which can limit the weight of each support space of the conveyor belt so that it has flexible support to ensure that it is not possible.

Generally, smooth rollers can be used when the power is not large and the environmental humidity is low. In situations where the environment is humid and the power is high, rubber-surface rollers should be used to improve Friction.
